Showtec QFX Multi FX Compact Light Set With Stand, Carry Bag and Footswitch

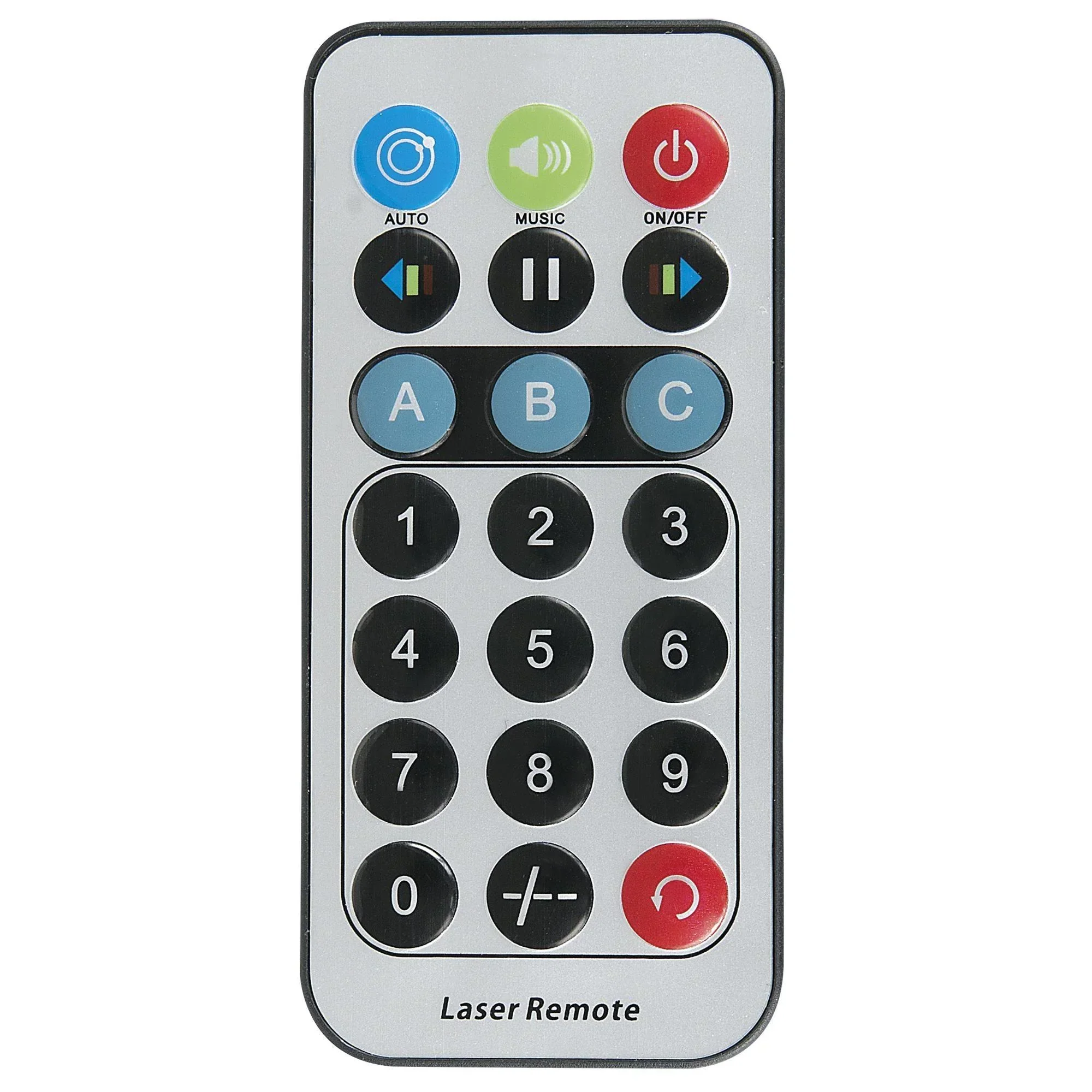

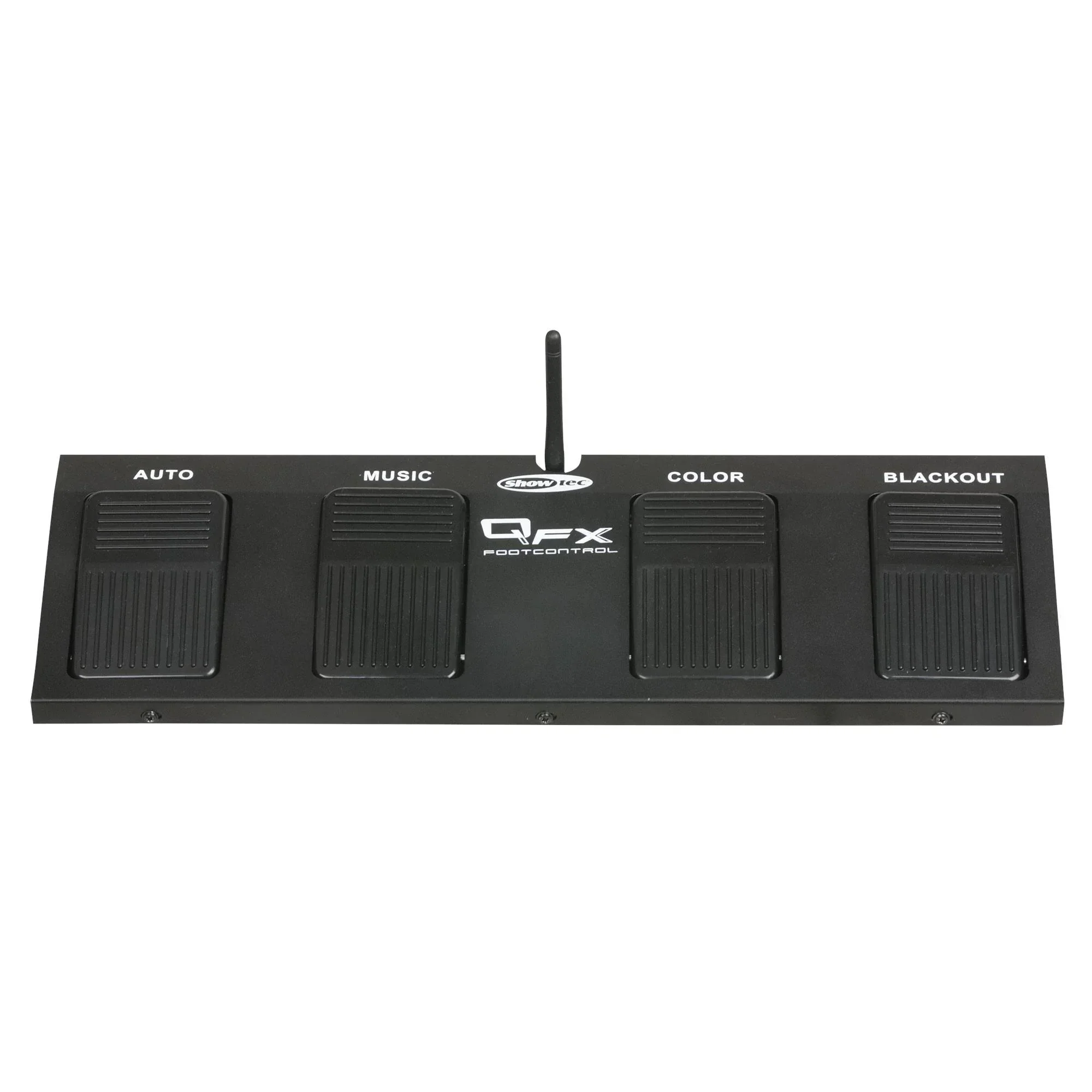

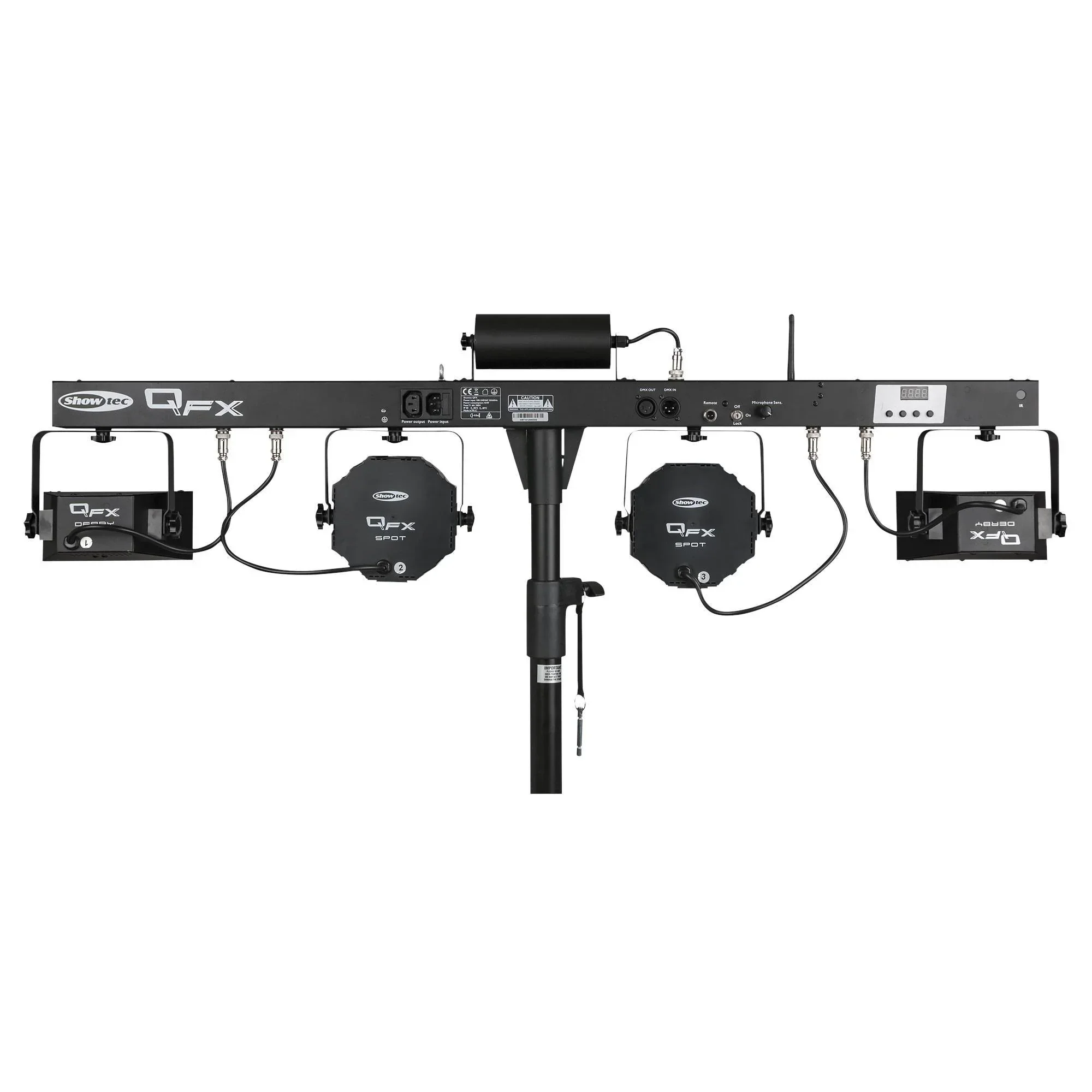

The Showtec QFX combines LED RGB spots, Derby fx, a Laser and a Strobe effect onto a single control bar. QFX maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The RG laser has many versatile grating & burst effects and is equipped with a key lock and remote interlock. The strobe has 4 sections with different preprogrammed patterns. The LED spot and Derby FX have RGB colours can be selected individually or in many preprogrammed combinations. The system is complete including a tripod stand, wireless footswitch, IR remote and carrying bags to protect the set during transport. The QFX controller bar features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show.

Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's an remote interlock is necessary for safety regulations.

Source

Light Source Type Diode, DPSS, LED

Light Source Quantity (Par) 6

Light Source Quantity (Effect) 6

Light Source Power (Par) 3 W

Light Source Power (Effect) 2 W

LED Colour Type RGB, White

LED Strobe Yes

LED Strobe Quantity 4

LED Strobe Power 4 W

Drive Current 0.95 A

Laser Class 2M

Laser Colour Red, Green

Laser Power (Total) 130 mW

Laser Power (Red) 100 mW

Laser Wavelength (Red) 650 nm

Laser Power (Green) 30 mW

Laser Wavelength (Green) 532 nm

Illuminance @ 2 m 1205 lx

Optical

Beam Angle (Circular) 24 °

Control and Programming

Control Mode Auto, DMX, IR, Master Slave, Sound

DMX Channels 3, 5, 9, 27

Protocols DMX

Display 7-segment, LED

Dynamic Effects Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 V AC 50-60 Hz

Power Consumption 45 W

Power Connector In IEC

Power Connector Out IEC

DMX Connector In XLR 3P

DMX Connector Out XLR 3P

Mechanical Specifications

Height (mm) 378 mm

Width (mm) 1185 mm

Depth (mm) 110 mm

Weight 6.6 kg

IP Rating IP20 (indoor use only)

Housing Metal

Colour Black
