Showtec Pinspot Bar 4 RGBW LED Light Bar

The Pinspot Bar 4 is a high-output bar with 4 individual pin spots. This bar is lightweight, which makes it ideal for many different events and purposes. The included 20° beam shapers make the bar very suitable for highlighting buffets, displayed products, or pointing out tables.

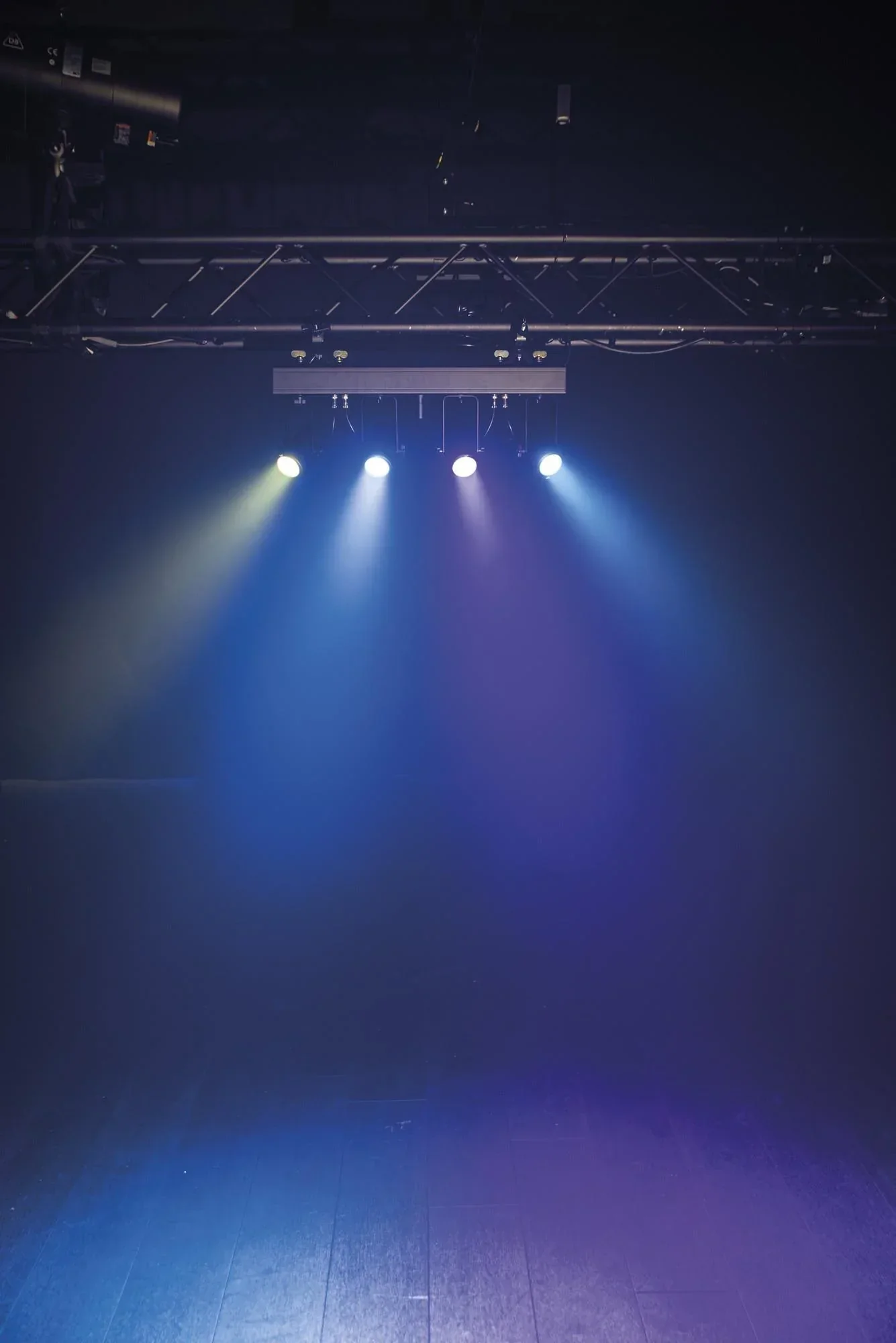

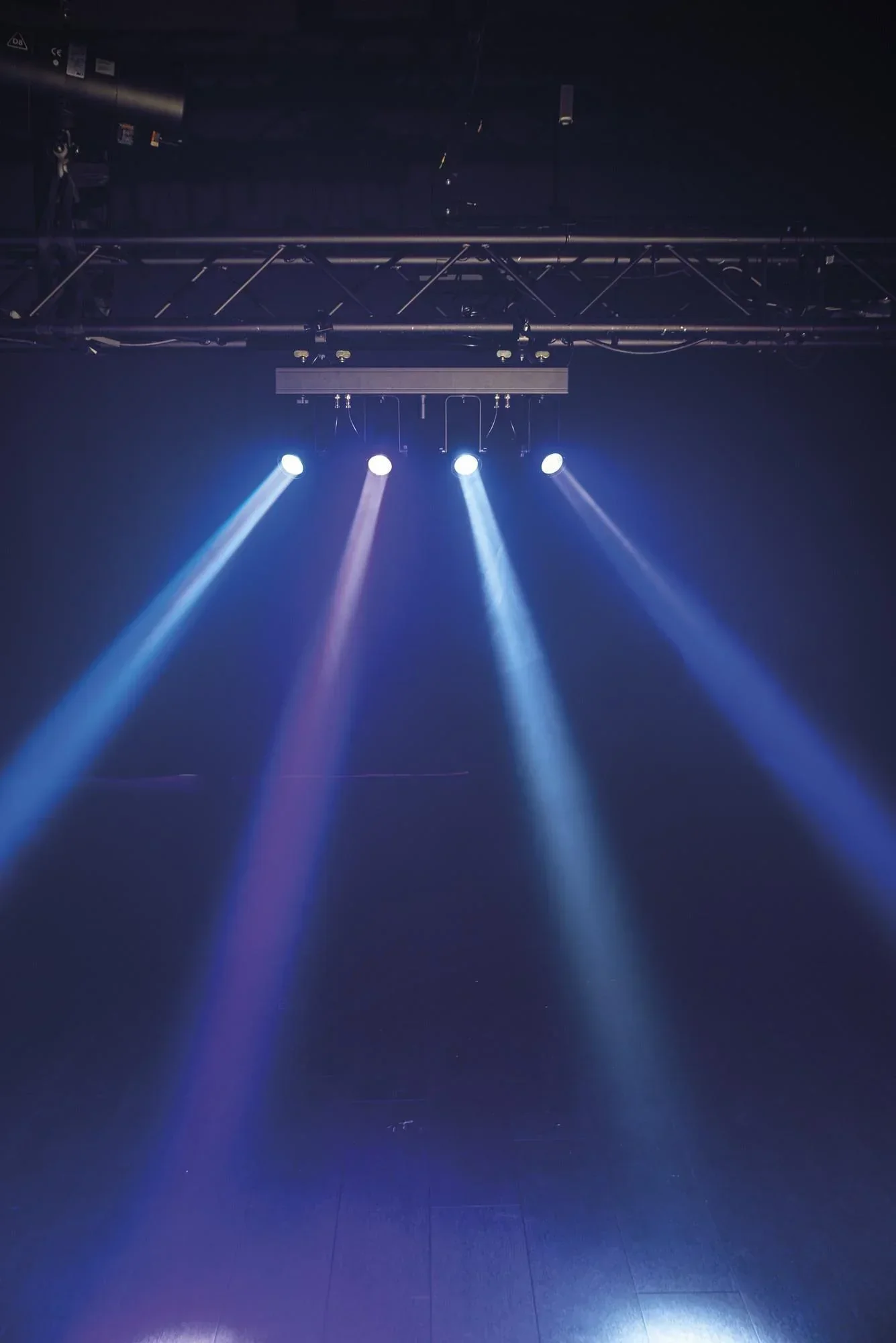

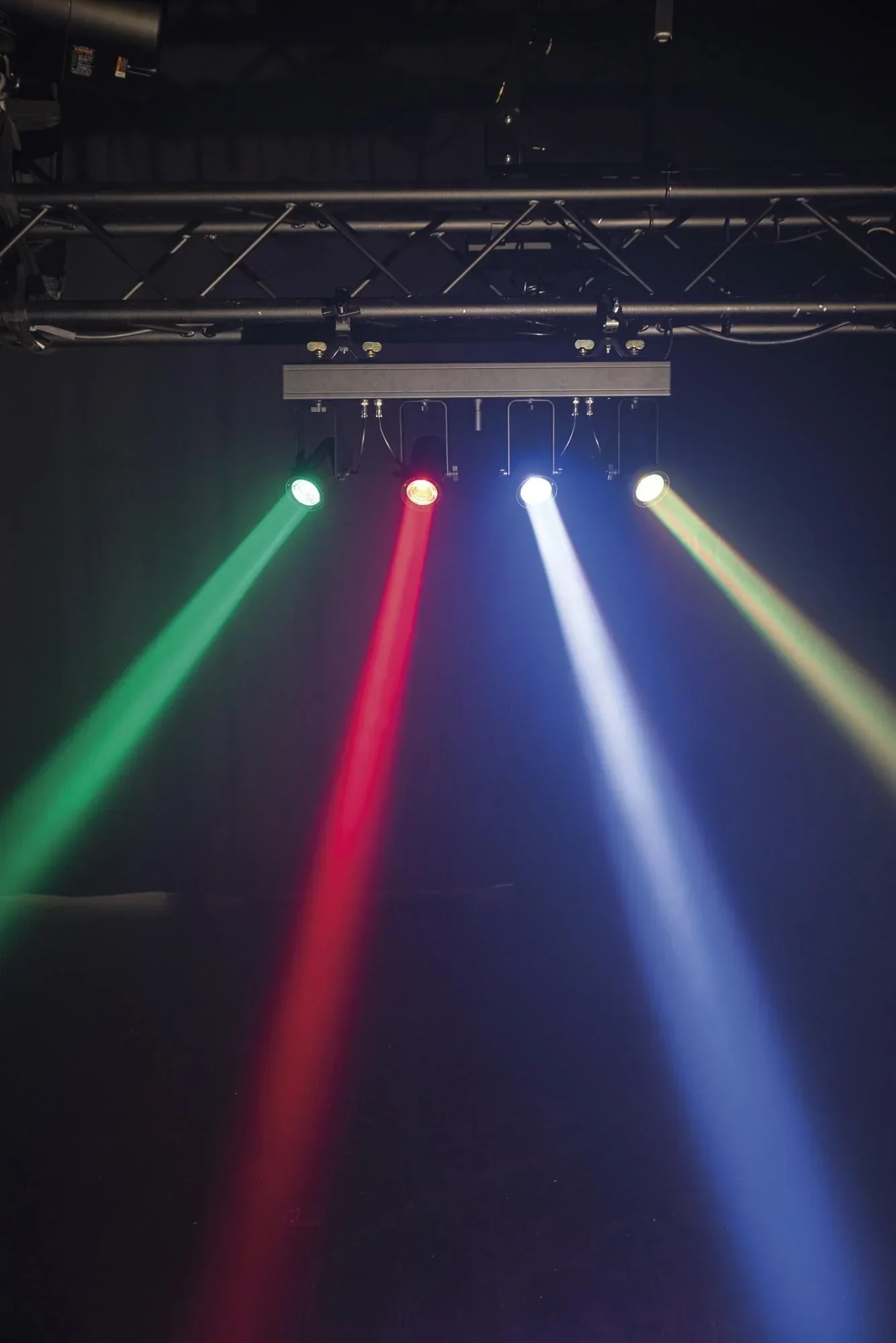

This superb bar produces a bright, narrow 4.5° beam or a 20° wash of light output.
The T-bar can be placed on a stand with the included 28-mm spigot, or hanged on a truss with the included Quick-Lock brackets. Direct mounting of a clamp is possible as well thanks to the M10 thread holes.
You can easily setup each individual spot with the onboard controls. Just connect the main power of the bar and you are ready to go.

urce

Light Source Type LED

Light Source Quantity 4

Light Source Power 20 W

LED Colour Type R, G, B, W

Life Expectancy 50000 h

Optical

Beam Angle (Circular) 4 °

Beam Angle Max. (Circular) 20 °

Control and Programming

Control Mode Auto, DMX, Manual, Master Slave, Sound

DMX Channels 4, 5, 6, 8, 10, 16, 19

Protocols DMX, RDM

Display OLED

Dim Curve Linear, Square, I-Square, S-Curve

Dimmer Resolution 8 bit

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 V AC 50-60 Hz

Power Consumption 90 W

Power Connector In Power Pro Blue

Power Connector Out Power Pro Grey

DMX Connector In XLR 3P, XLR 5P

DMX Connector Out XLR 3P, XLR 5P

Mechanical Specifications

Height (mm) 278 mm

Width (mm) 800 mm

Depth (mm) 177 mm

Weight 6.5 kg

IP Rating IP20 (indoor use only)

Housing Aluminium die-cast

Colour Black
