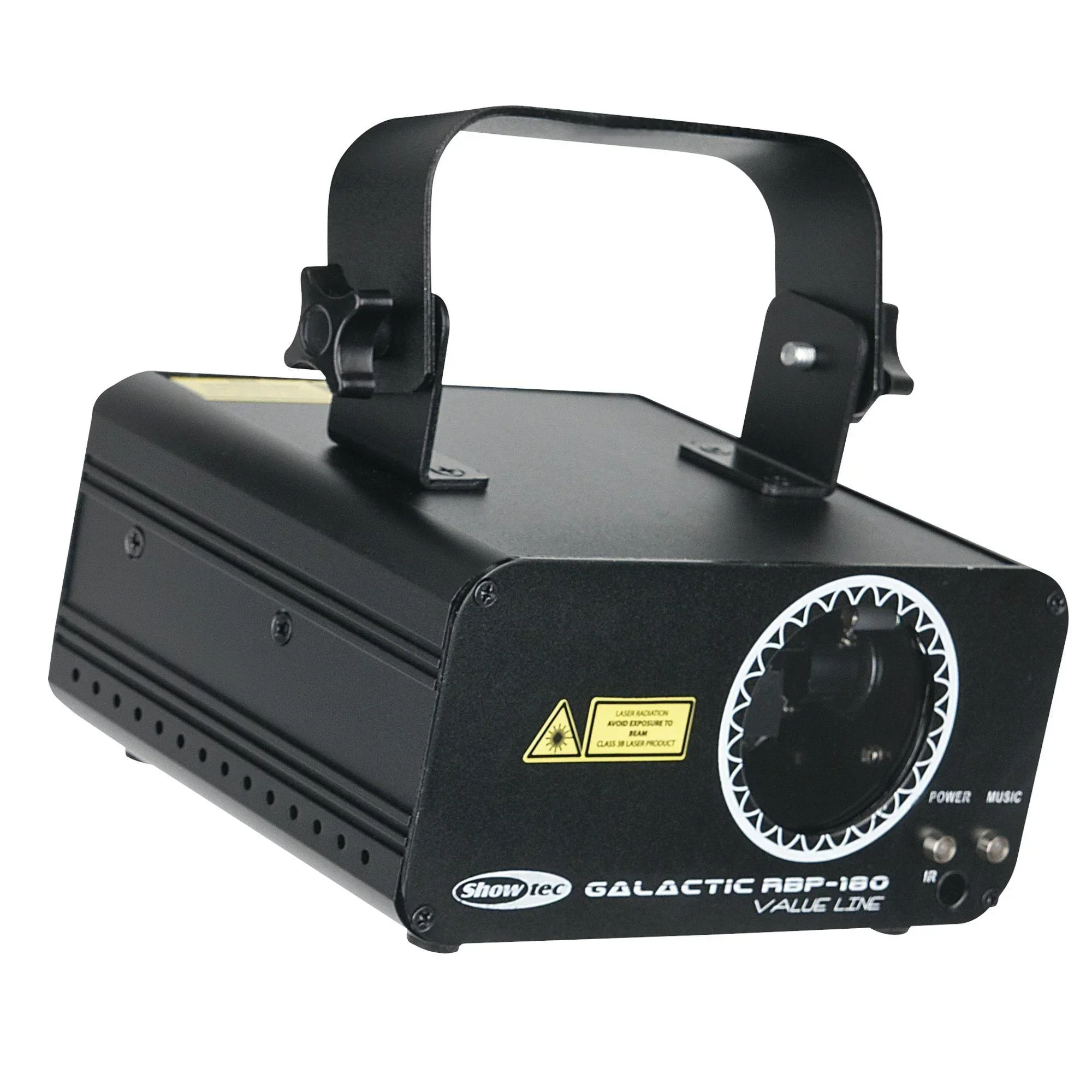

Showtec Galactic RBP-180 180 mW red blue purple Laser

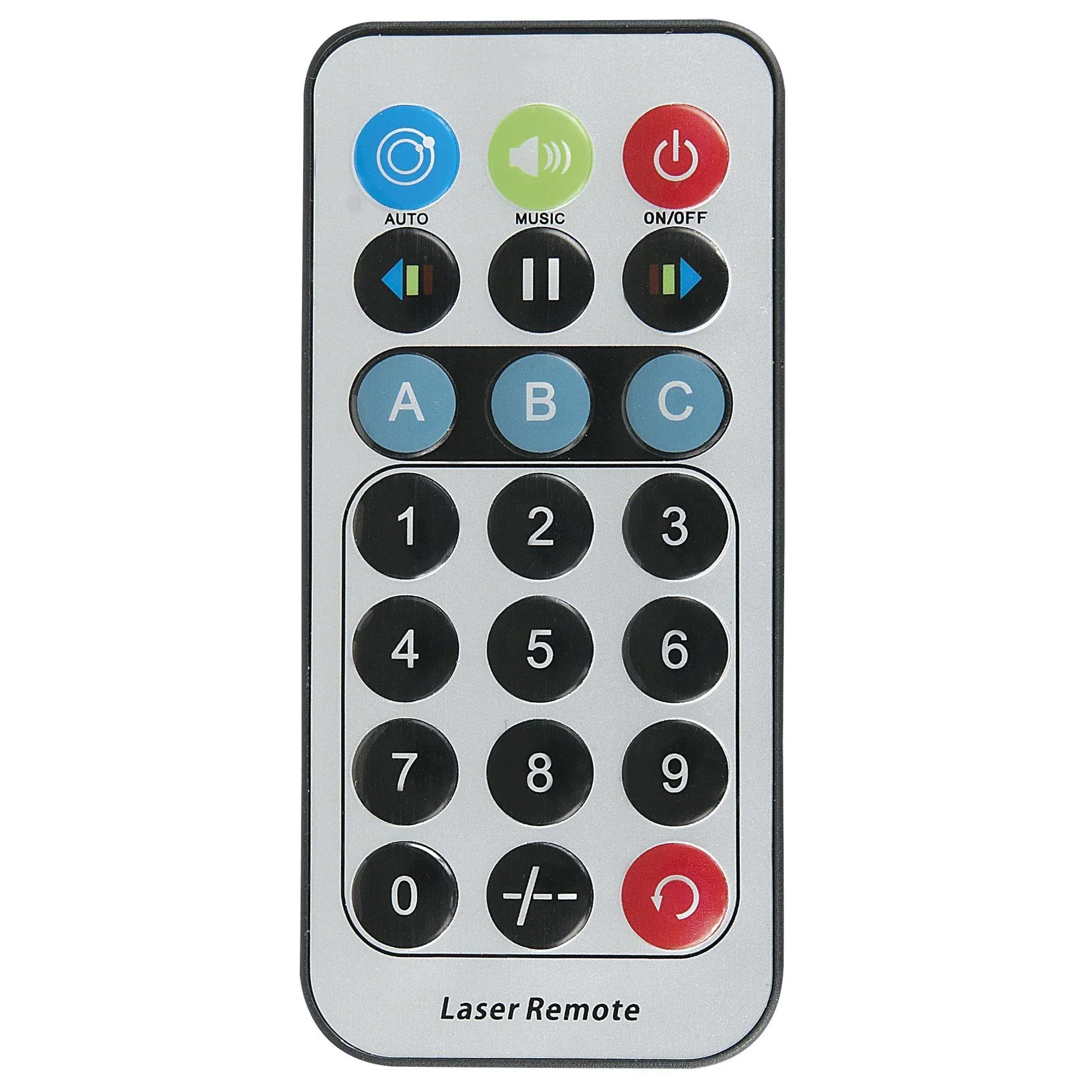

The Showtec Galactic RBP-180 MKII is an 180 mW laser with Red, Blue and Purple colour output, 32 patterns and built-in programs, suitable for indoor venues. Its wide 30° scan angle with manual zoom, rotate and X/Y roll functions makes it fit for either short-throw and long distance applications. The Galactic RBP-180 MKII is controllable via DMX, Master/Slave and Infrared remote in either Manual, Auto-run and Sound controlled mode. It comes with an infrared remote and is compatible with other Galactic MKII lasers.

Please note that an optional remote interlock is required for safety regulations.

Source Laser Power 180 mW

Laser Source Diode

Laser Modulation TTL

Laser Class 3B

Laser Colour Red, Blue, Purple

Laser Power (Total) 180 mW

Laser Power (Red) 100 mW

Laser Wavelength (Red) 650 nm

Laser Power (Blue) 80 mW

Laser Wavelength (Blue) 450 nm

Control and Programming

Control Mode Auto, Built-in Program, Master Slave, Remote, Sound

DMX Channels 10

Display 7-segment, LED

Movement Laser Scan Angle (Max.) 30 °

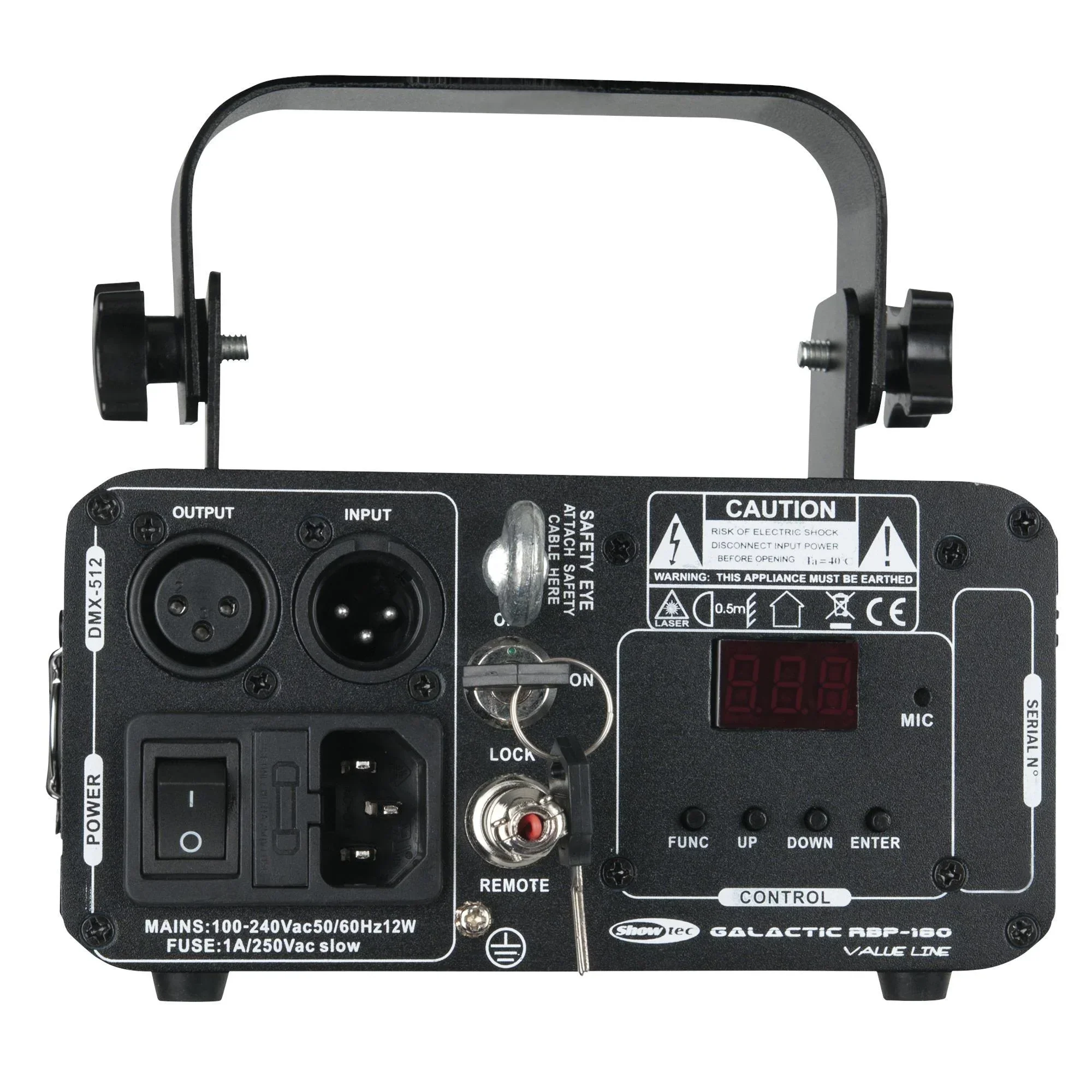

Electrical Specifications and Connections

Power Supply 100-240 V AC 50-60 Hz

Power Consumption 16 W

Power Connector In IEC

DMX Connector XLR 3P In/Out

DMX Connector In XLR 3P

DMX Connector Out XLR 3P

Mechanical Specifications

Height (mm) 158 mm

Width (mm) 168 mm

Depth (mm) 148 mm

Weight 1.3 kg

IP Rating IP20 (indoor use only)

Housing Metal

Colour Black
