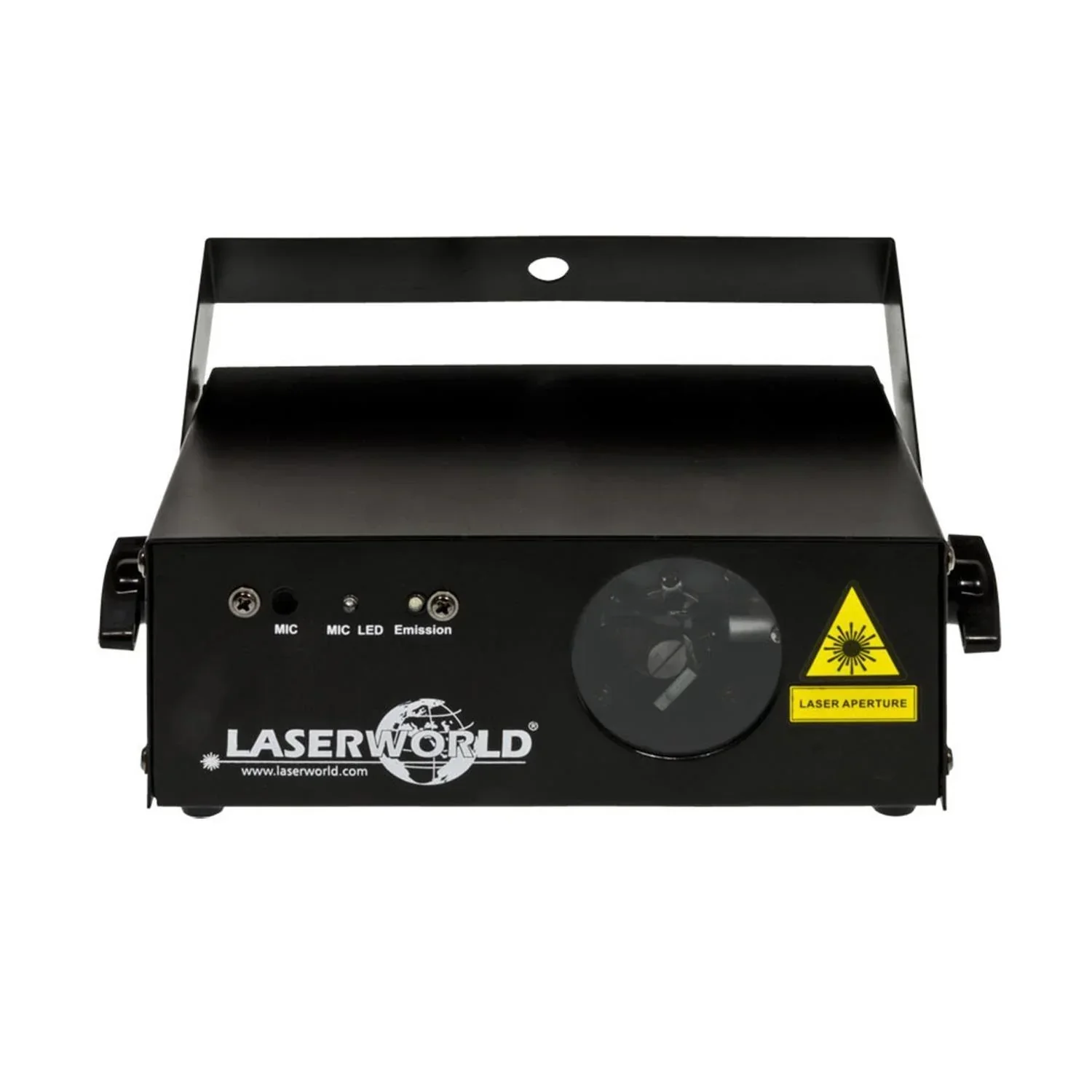

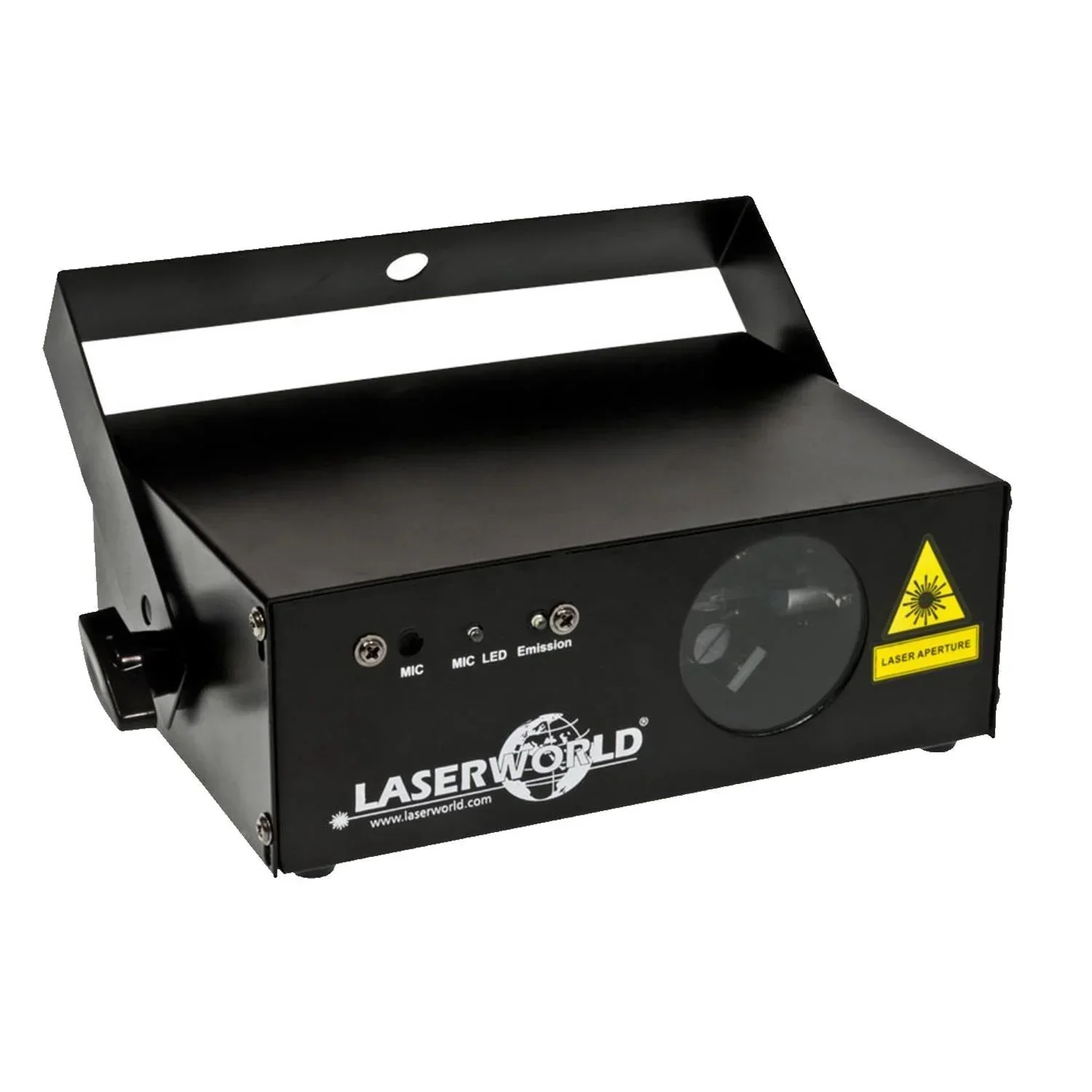

Laserworld EL-60G 60mw Green Show & Party Laser

The Laserworld EL-60G is a green single color laser system with a total output power of up to 60mW.

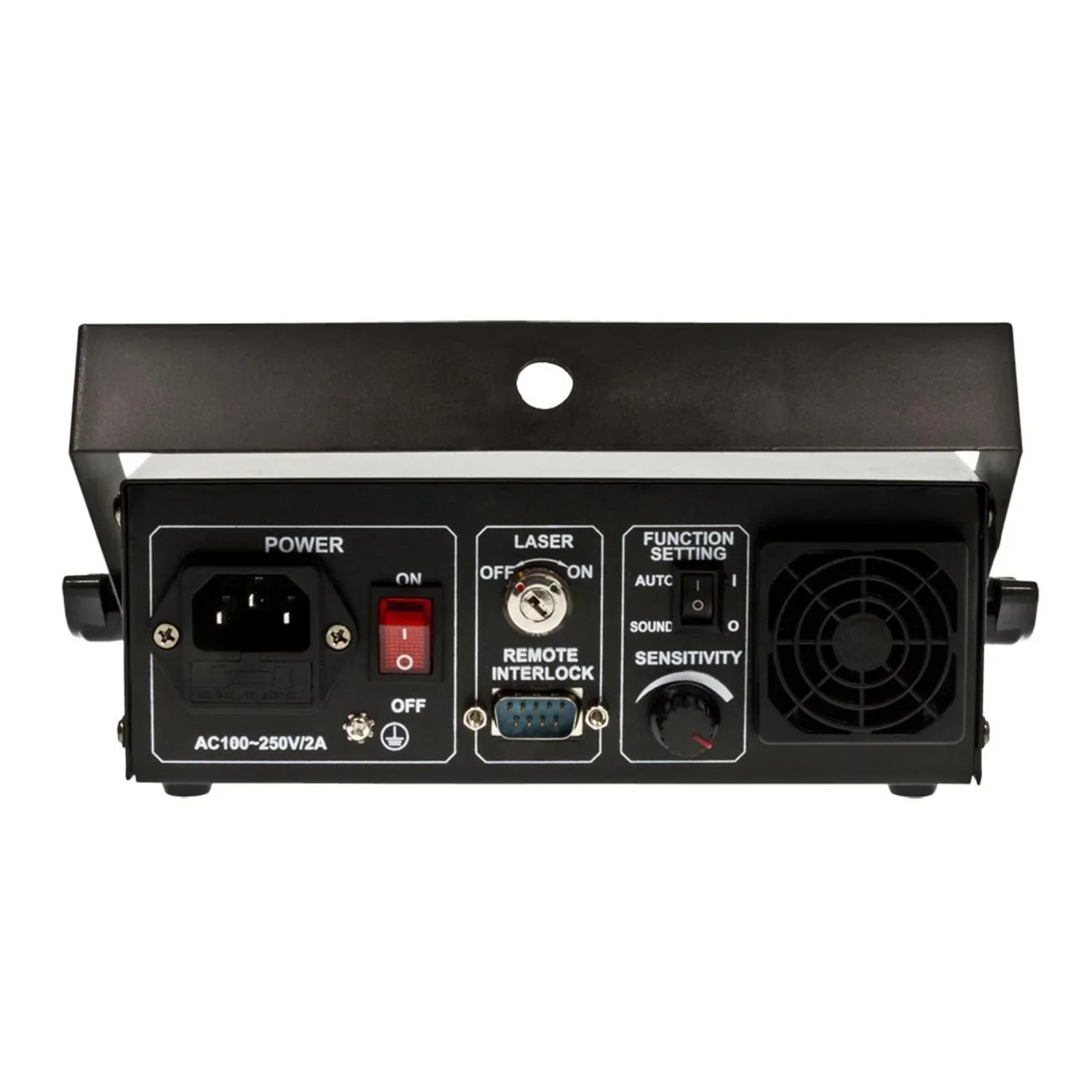

The green DPSS laser module with a wavelength of 532 nm ensures a high visibility and brightness. At the same time the projector has good beam specifications with a beam diameter of ca. 3 mm and beam divergence of about 1.5 mrad and it offers high-speed stepper motors with high-speed step motors, up to 2-5kpps as well as a scan angle of up to 30°. ca. 50 (layers, tunnels, fences, waves, etc.) basic effects are available in the sound-to-light mode. For this mode the sensitivity of the integrated adjustable microphone can be altered. There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.

The Laserworld EL-60G is a very affordable solution for first-time users and it is often used in bars, small clubs, at private parties or home use.

• A green single colour laser system
• Typical power 60mW
• basic effects: ca. 50 (layers, tunnels, fences, waves, etc.)
• Stand-alone mode
• Sound-to-light mode
• Adjustable mounting bracket
• Compact metal housing

General

• Total Power:  60mW
• Guaranteed Power:  40mW
• Power Green:  40mW / 532nm
• Beam Specifications:  ca. 3 mm / 1.5 mrad
• Scanner:  high-speed step motors, up to 2-5kpps
• Max. Scan Angle:  30°
• Laser Source:  DPSS Laser
• Laser Class:  3B
• Operation Modes:  Sound-to-Light, Stand-alone
• Basic Patterns:  ca. 50 (layers, tunnels, fences, waves, etc.)
• Accessories:  power cable, manual, interlock, key
• Power Supply:  85V - 250V AC

Physical & Dimensions

• Width: 205mm
• Height: 145mm
• Depth: 70mm
• Weight: 1.4kg
