Laserworld CS-1000 RGB Mk3 Laser 1w Colour Laser

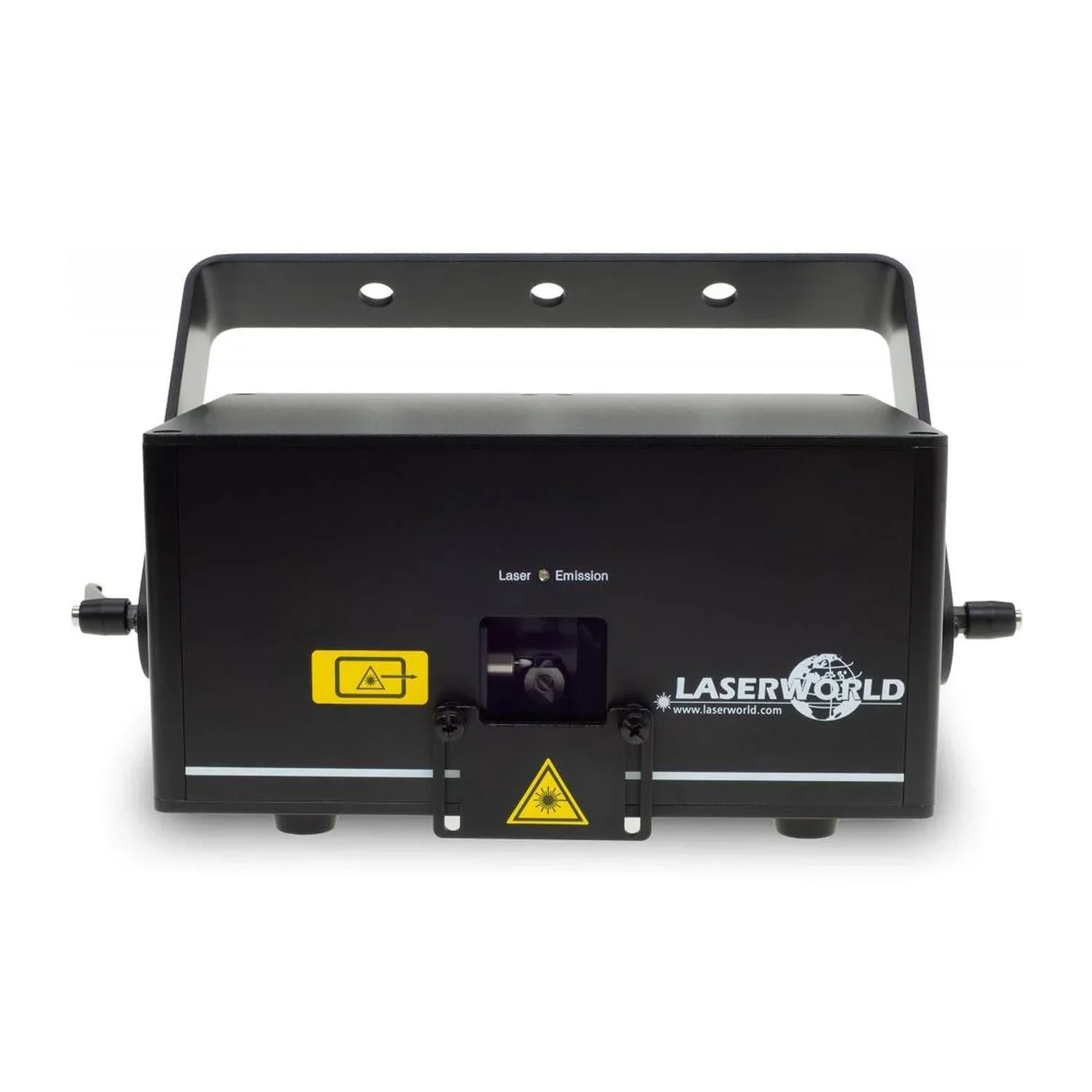

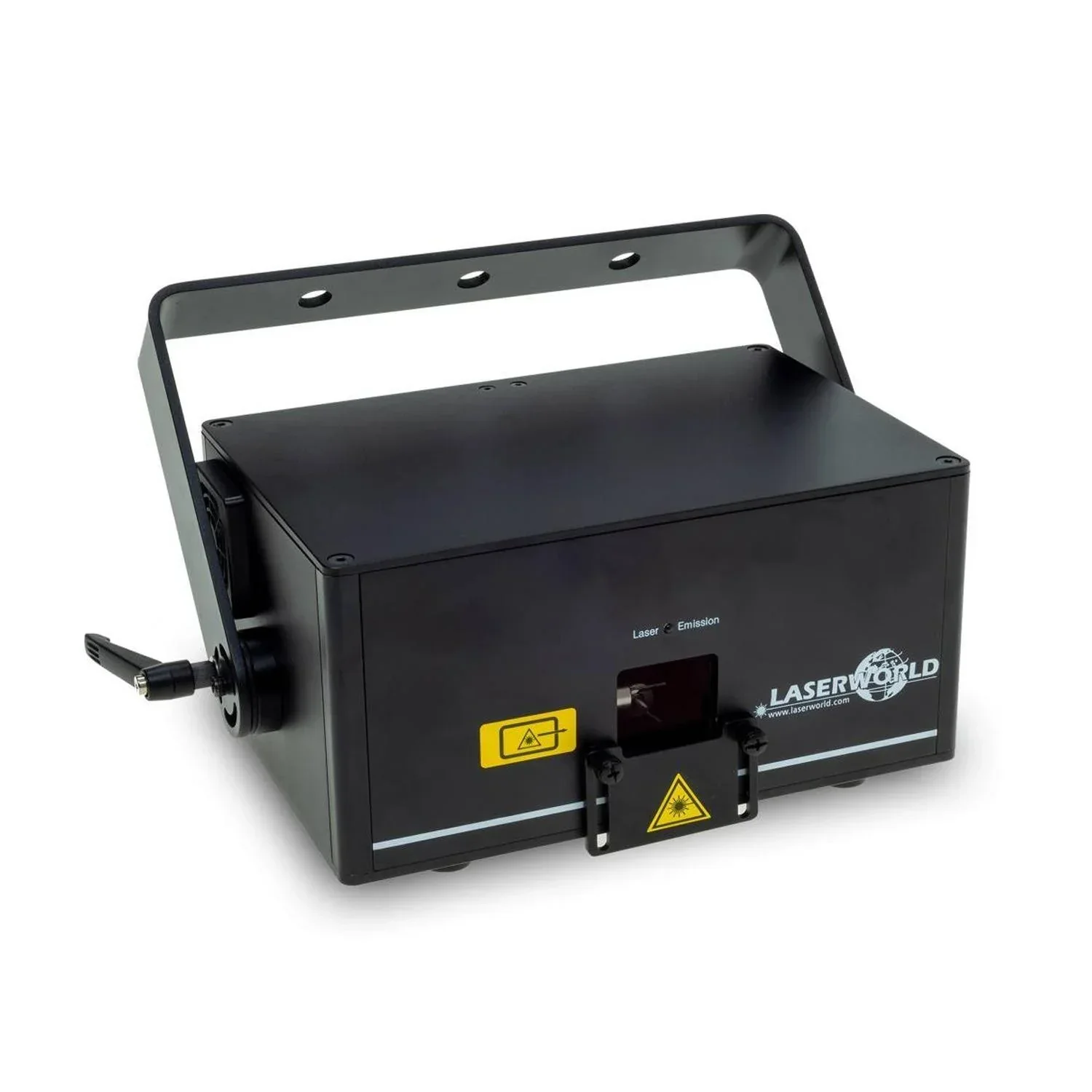

The Laserworld CS-1000RGB MK3 show laser projector comes with a completely new designed compact housing, which is light weight and has a stable bracket. The solid bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The Laserworld CS-1000RGB MK3 is a pure diode multi colour RGB laser system with a total output power of up to 1'000 mW and a guaranteed output power of 800 mW. The red laser source has an output power of 200 mW / 650 nm, the green 70 mW / 520 nm and the royal-blue laser source has an output power of 530 mW / 450 nm. The laser sources ensure brilliant colours and powerful laser beams. The projector has good beam specifications with ca. 3 mm / 1.1 mrad. The galvo system has a scan speed of up to 28 kpps @ 8° ILDA.

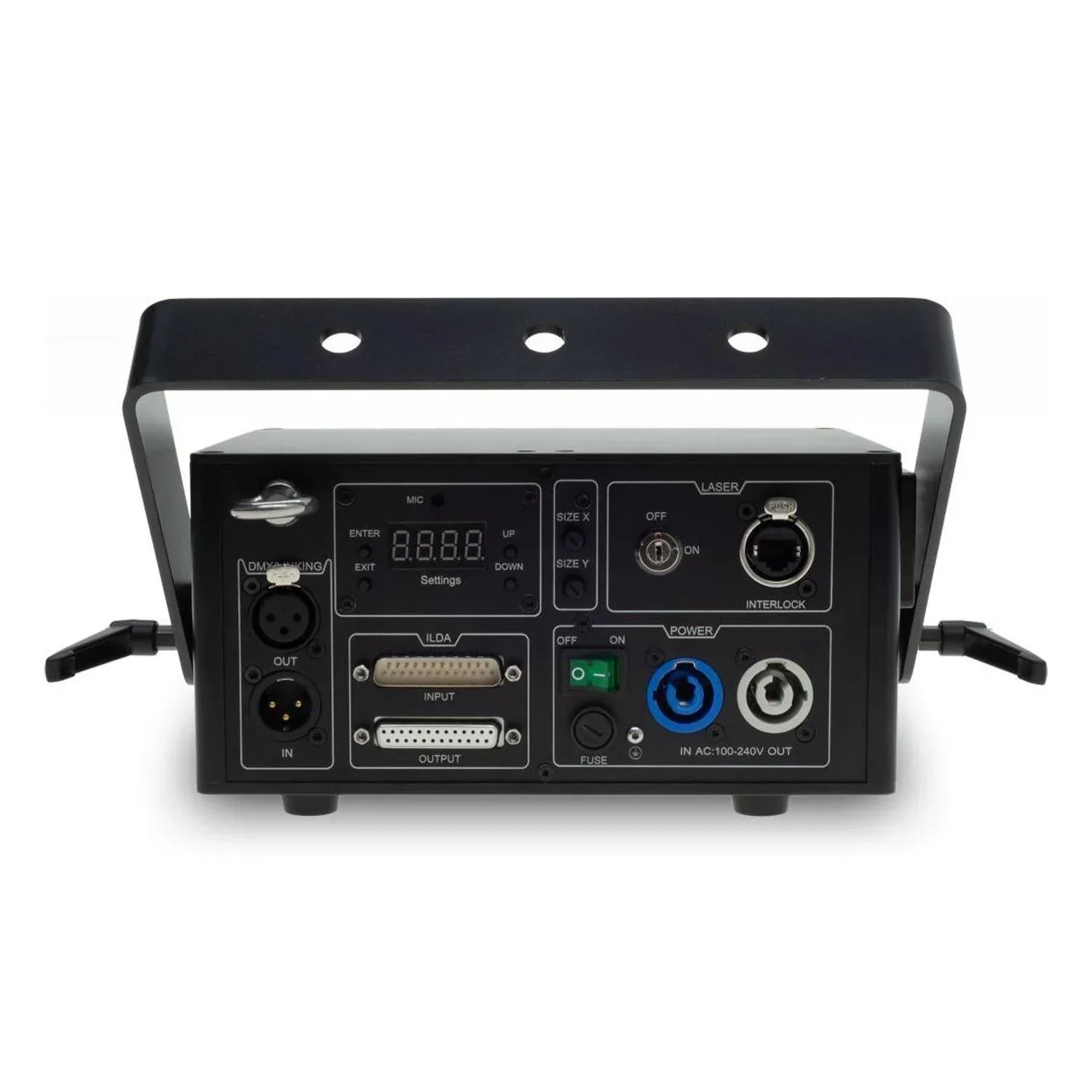

Pattern size can be set by two rotary buttons (X and Y axis) on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.

Through DMX, in the automatic mode as well as in the sound-to-light mode ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.

Next to the modes mentioned  above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-1000RGB MK3 is computer controllable through a professional ILDA interface. Thus custom or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software.

There are safety features like a key switch, an interlock connector and an on-off switch.

The Laserworld CS-1000RGB MK3 is ideal for small to semi-professional applications and is perfectly suitable in bars, small to medium sized clubs and discos as well as for mobile DJs, private use and in any other party location.

• 1 W RGB laser system
• DMX controllable, master-slave operation possible
• Diode-only laser system
• Computer controllable via ILDA
• Sound-to-light and stand-alone mode
• Front panel laser beam masking plate
• Capable of basic graphics, texts and logos
• Several hundred colors, including white
• 28 kpps @ 8° ILDA scanners
• 360° mounting bracket

• Total Power:  1'000 mW
• Guaranteed Power:  800 mW
• Power Red:  200 mW / 650 nm
• Power Green:  70 mW / 520 nm
• Power Blue:  530 mW / 445 nm
• Beam Specifications:  ca. 3 mm / 1.1 mrad
• Scanner:  28 kpps@8°
• Max. Scan Angle:  40°
• Laser Source:  Diode
• Laser Class:  4
• Operation Modes:  stand-alone, sound-to-light, DMX, ILDA, master-slave
• Basic Patterns:  ca. 130 (layers, tunnels, fences, waves, etc.)
• Accessories:  power cable, manual, interlock, key
• Power Supply:  85V - 250 V AC
• Power Consumption:  20 W
• Dimensions:  220 x 150 x 116 mm
• Weight:  2,5 kg
